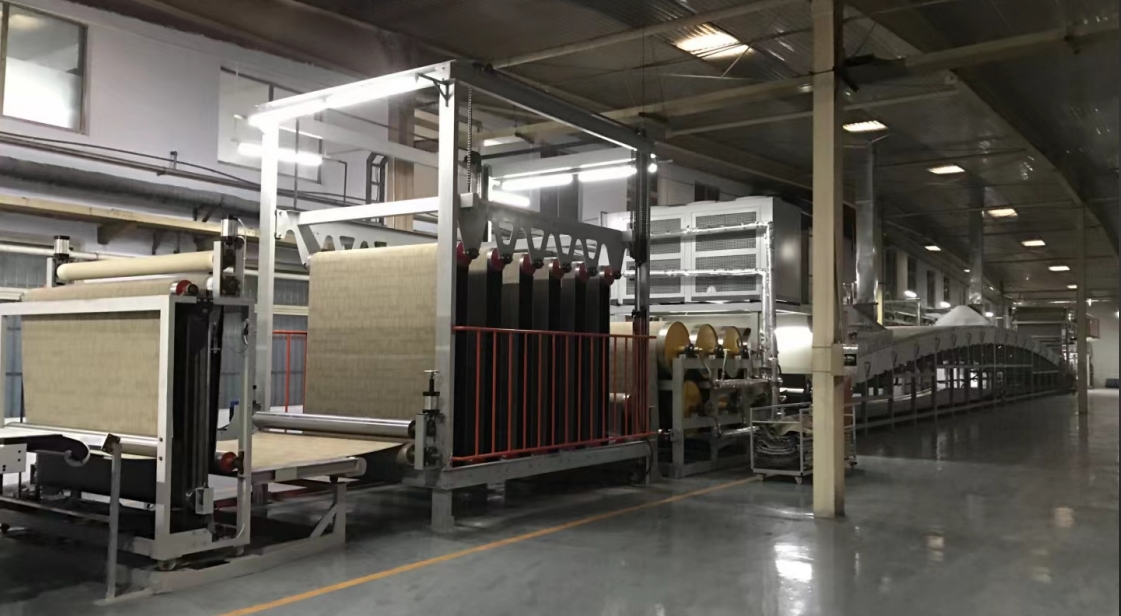

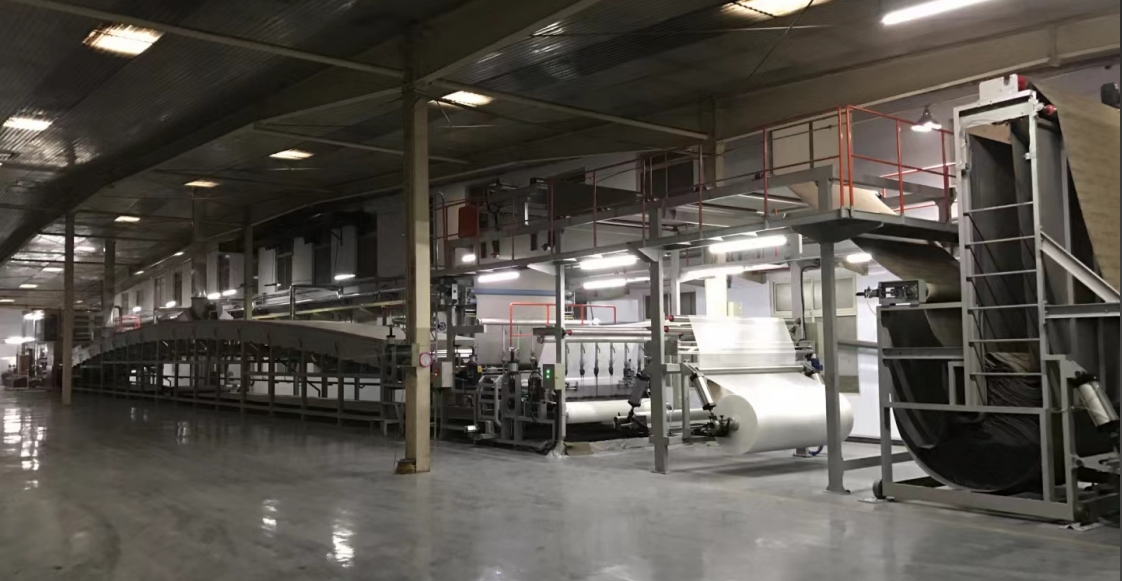

PVC拼塊地毯生產線
主要技術參數 main technical parameters
公稱幅寬 Width | 220cm可調(有效幅寬200cm) 220cm Adjustable(working width up to 200cm) |
| 機械速度 Mechanical speed | 1~12m/min 變頻調速 1~12m/min Frequency Control |
方塊尺寸 Tile size | 50cm×50cm、 50cm×100cm、 25cm×100cm、 100cm×100cm、多邊形Polygon |
| 傳動方式 Transmission mode | 水平輸送特氟龍帶 Horizontal teflon conveyor belt |
熱源 Heating source | 導熱油或天然氣(40萬大卡供油溫度250℃)Conduction oil or gas(with calorific value of 400,000 at 250℃) |
烘箱溫度 Oven temperature | 100~200℃自動恒溫控溫 Auto constant temp. Control 100~200℃ |
整機功率 Total power | ≈55KW APProx.55KW |

產品用途
適用于簇絨或針刺、尼龍或丙綸地毯的背面涂塑、塑化及自動切塊等流水生產線。
Intended for online operation of tufting, knitting, and nylon or PP fibre carpet back coating for plasticization as well as CNC cutting for sizes desired and more.
