FPJ-1500數控精密發泡機
主要技術參數 main technical parameters
發泡膠量Foaming rubber dosage | 0.3～1.5m/h（0.3～2t手動調節或全自動PLC跟蹤涂層車速） |
發泡頭溫度 Foaming head temp. | ≤40℃ |
適用室溫Applicable ambient temp. | -10～35℃ |
大氣壓影響 Atmospheric pressure range | 海拔0-2500m PLC設置 |
物料與空氣倍率 Ratio between throughput/air | 20℃～80℃ （PLC設置/ set-up） |
適用漿料粘度 Applicable glue viscosity | 1000-60000cps |
供料方式Feeding mode | 螺旋泵或軟泵管 |
整機功率 Total power | 5.5KW（標準配置 standard set-up mode） |
外形尺寸 Size | L 1600mm×W 650mm×H 1350mm |
整機重量 weight | 400KG |
產品用途
該發泡機適用于干法水性PU合成革的膠料發泡，用來替代濕法PU合成革，以改變復雜的加工工藝從而達到降低成本，并具有環保、節能的特點。加工出的產品有極好的透氣性。也可用于地毯、人造毛皮的背膠、窗簾布的發泡涂層、乳膠、橡膠、化妝品等的發泡。
This machine model is designed for the dry rubber foaming process of fluid PU synthetic leather as a replacment of the wet process to change the complicated manufacturing process, resulting in lower costs, environmental-friendliness,energy efficiency and optimal porosity of end products.
It is also designed for carpet and artificial fur backing operation, curtain cloth foaming/coating operation and foaming operation of latex, rubber and cosmetics and more.

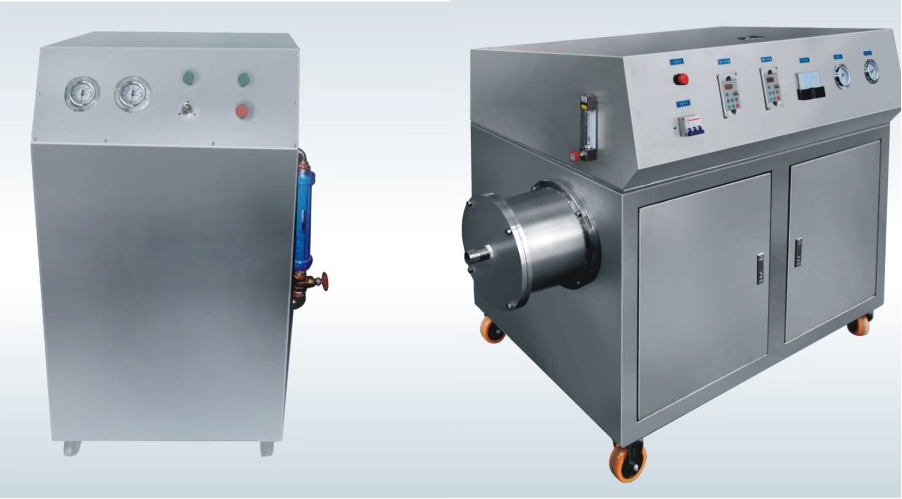

FPJ-Ⅰ/FPJ-Ⅱ發泡機
主要技術參數 main technical parameters
發泡膠量Foaming rubber dosage | I型40～300kg/h，II型100～800kg/h Type I 40～300kg/h，type II 100～800kg/h |
發泡比 Foaming ratio | 2～8倍可調節 |
適用粘度 Applicable viscosity | 200-20000cps |
外形尺寸 Size | I型 500mm×600mm×1200mm II型 1550mm×800mm×1200mm type I 500mm×600mm×1200mm |
產品用途
該產品適用于織物涂層膠、地毯膠、裝飾、人造毛皮、玻璃纖維、人造革基布、窗簾布、無紡布涂層及后整理。該發泡機具有氣液、泡沫密度半自動及全自動變頻控制系統。
The product is applicable to fabric coating glue, carpet glue and ornament, artificial fur, glass fiber, artificial leather base fabric, curtain fabric, non-woven fabric coating and finishing. This foaming machine has semi-automatic and fully automatic frequency control systems for gas-liquid and foam density.
